Specification

Model

SRB-270A

SRB-270B

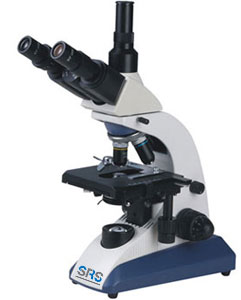

SRB-270T

Viewing Head

Monocular Inclined at 45°,360°Rotatble

●

Compensation Free Binocular Head, Inclined

at 30°(55mm-75mm)

●

Compensation Free Trinoculaar

Head, Inclined

at 30°(55mm-75mm)

●

Eyepiece

WF10×/18mm

●

●

●

Objective

Achromatic 4×、10×、40×(s)、100×(s)Oil

●

●

●

Nosepiece

Backward Quadruple Nosepiece

●

●

●

Stage

Double layer mechanical stage

●

●

●

Stage Sixe:140mm×132mm

Moving Range:70mm×30mm

Condenser

N.A.1.25 Abbe condenser with iris diaphragm and

filter

●

●

●

Focusing

Coaxial coarse & fine focusing adjustment Fine

focusing scale value 0.002mm

●

●

●

Light Source

Halogen bulb 6V20W or 6V15W, AC 220V/110V

●

●

●

Adjustable light intensity

Optional Accessory

Eyepiece：WF16×、WF20×、P16×

Objective：20×、60(s)

Semi-plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil

Plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil

Reflective Mirror, Demonstration(Teaching) Head Dark field and Phase contrast device

1.3Mega、2.0Mega、3.0Mega、5.0Mega pixels CMOS Digital camera eyepiece

Photography attachment and CCD Adapter 0.5×、0.57×、0.75×

Compensation Free Binocular & Trinocular Head (48mm-75mm)

LED illumination
