SRzoom-6745 Series
SRzoom-6745 Series Zoom Stereo Microscopes
|
|
|

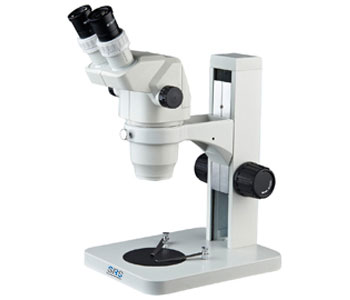

SRzoom-6745-B |

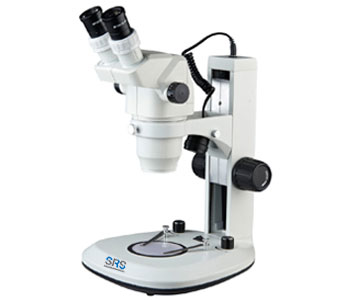

SRzoom-6745-C |
|
|
|

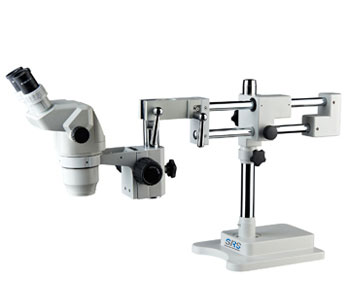

SRzoom-6745-D |

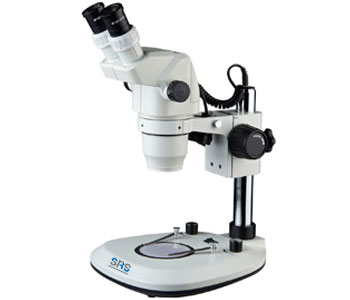

SRzoom-6745-E |
Product introduction:
1, Provide high quality optical system and stable operation system.
Complete accessories and diversified combination specification. To meet
high-precision requirements on modern biology, medicine, scientific
research, inspection lines in modern electronics and other technology
industries.
2, High quality optical components coated with special film, created a
high- quality optical images.
3, Formed flat and good contrast image, especially in the peripheral visual
field, it is more bright and clear.
4, Zoom objective lens 0.67X~4.5X (6.7:1), standard magnification 6.7X~
45X. Use optional auxiliary lens, the magnification can be 2X~225X.
5, The standard working distance is 100mm, use optional auxiliary lens, the
working distance can extend to 26mm~287mm, to create enough space for the
user.
6, Viewing head 45°or 60°inclined, diopter adjustment in two tube, ensure
the different vision of users to get a clear image.
7, Suit to ergonomic design, the best height of the eyepoint, uses feel
less fatigue when long time use.
8, The zoom hand wheel (axial) bilateral settings, easy operation, high
precision zoom repeat.
9, A variety of accessories, expanding the application areas.
Technical specifications:
|
Eyepiece |
Wide field high eyepiont eyepiece WF10X/22mm（can mount micrometer） |
|
Wide field high eyepiont eyepiece WF15X/16mm（can mount micrometer） |
|
|
Wide field high eyepiont eyepiece WF20X/12mm（can mount micrometer） |
|
|
Wide field high eyepiont eyepiece WF25X/9mm |
|
|
Viewing Head |
SRzoom-6745：Binocular head, 45° inclined, 360°rotatable, zoom objective 0.67X-4.5X, working distance 105mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5) |
|
SRzoom-9040：Binocular head, 45° inclined, zoom objective 0.9X-4.0X, working distance 105mm. |
|
|
SRzoom-6745A：Binocular head, 60° inclined, zoom objective 0.67X-4.5X, working distance 105mm. |
|
|
SRzoom-9040A：Binocular head, 60° inclined, zoom objective 0.9X-4.0X, working distance 105mm. |
|
|
SRzoom-6745TR：Trinocular head, 45° inclined, zoom objective 0.67X-4.5X, working distance 105mm. |
|
|
SRzoom-9040TR：Trinocular head, 45° inclined, zoom objective 0.9X-4.0X, working distance 105mm. |
|
|
SRzoom-6745ATR：Trinocular head, 60° inclined, zoom objective 0.67X-4.5X, working distance 105mm. |
|
|
SRzoom-9040ATR：Trinocular head, 60° inclined, zoom objective 0.9X-4.0X, working distance 105mm. |
|
|
Auxiliary Lens |
0.3X/ 287mm |
|
0.4X/217mm |
|
|
0.5X/177mm |
|
|
0.75X/117mm |
|
|
1.5X/47mm |
|
|
2X/26mm |
|
|
Focus |
SZA1focus arm, two focusing knobs are with tension adjustable, adjust range 50mm |
|
SZA2 industry bound focus arm 1 (industry exclusive use) |
|
|
SZA3 industry bound focus arm 2 (industry exclusive use) |
|
|
Stand |
SZST1 arm type plain stand |
|
SZST2 pillar type large plain stand |
|
|
SZST3 pillar type transmission stand, top & bottom halogen illuminator 12V15W (brightness adjustment). |
|
|
SZSTL1 single arm universal stand |
|
|
SZSTL2 double arm universal stand |
|
|
SZ-B1 transmitted light base, be used with SZ-ST1 |
|
|
Other light source |
Ring light/LED/Fiber |
|
Photo device |
Photo tube（with PK mount），4X photo eyepiece |
|
TV device |
0.35X/0.5X/1.0X C-mount adapter |
|
Others |
Precision measurement platform, dark field condenser, jewelry clip |
Optical Data:
|
Objective |
0.3X |
0.4X |
0.5X |
0.75X |
1X |
1.5X |
2X |
|
|
Working Distance |
287mm |
217mm |
177mm |
117mm |
105mm |
47mm |
26mm |
|
|
10X |
Magnification |
2.0x-13.5x |
2.7x-18.0x |
3.4x-22.5x |
5.0x-33.8x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
|
View Field (mm) |
109.5-16.3 |
82.1-12.2 |
65.7-9.8 |
43.8-6.5 |
32.8-4.9 |
21.9-3.3 |
16.4-2.4 |
|
|
15X |
Magnification |
3.0x-20.3x |
4.0x-27.0x |
5.0x-33.8x |
7.5x-50.6x |
10.1x-67.5x |
15.1x-101.3x |
20.1x-135x |
|
View Field (mm) |
79.6-11.9 |
59.7-8.9 |
47.8-7.1 |
31.8-4.7 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
|
|
20X |
Magnification |
4.0x-27.0x |
5.4x-36.0x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
20.1x-135.0x |
26.8x-180x |
|
View Field (mm) |
59.7-8.9x |
44.8-6.7 |
35.8-5.3 |
23.9-3.6 |
17.9-2.7 |
11.9-1.8 |
9-1.3 |
|
|
25X |
Magnification |
5.0x-33.8x |
6.7x-45.0x |
8.4x-56.3x |
12.6x-84.4x |
16.8x-112.5x |
25.1x-168.8x |
33.5x-225x |
|
View Field (mm) |
44.8-6.7 |
33.6-5.0 |
26.9-4.0 |
17.9-2.7 |
13.4-2.0 |
9.0-1.3 |
6.7-1.0 |
|
|
30X |
Magnification |
6x-40.5x |
8x-54x |
10x-67.5x |
15x-101x |
20x-135x |
30x-202x |
40x-270x |
|
View Field (mm) |
34.8x-5.1 |
26.1-3.87 |
20.9-3.1 |
13.9-2.1 |
10.4-1.55 |
6.9-1 |
5.2-7.5 |
|
